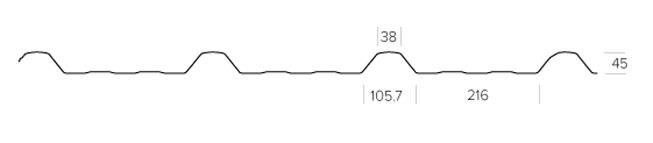

CROSS SECTIONAL LINE DRAWING

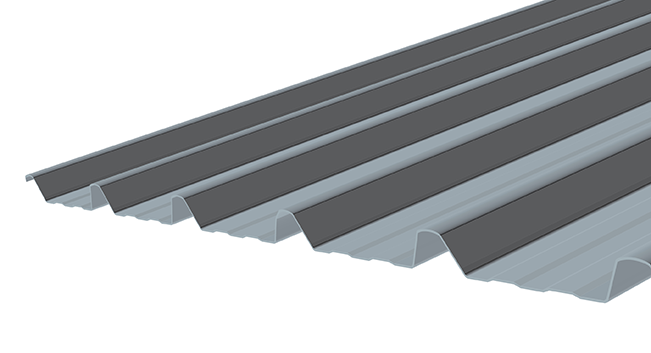

Metcom 965
- About
- Metcom 965 is a new profile that has been specifically developed for that perfect balance of aesthetics and performance. The wide cover width optimise's efficiencies on-site for large commercial projects and the additional option of having the pan with or without "swages" means the Metcom 965 profile is more aesthetically pleasing when laid as a wall cladding. Metcom 965 is available in Zincalume®, Galvsteel®, COLORSTEEL® Maxam™.
- Cover Width
- 965mm
- Sheet Width
- 1065mm
- Minimum Pitch
- 3° (minimum pitch will increase depending on sheet lengths - please refer to information sheet.)
- Application
- Commercial, Residential, Rural, Industrial roofing and cladding
- Orientation
- Roofing and both vertically and horizontally laid cladding
- Availability
- Manufactured in Hamilton from March 2019 and Christchurch May 2019. Available nationwide.
- Swage Options
- Available with or without swages
Downloads
Download AllInstallation details available for download in PDF, DWG, DXF & RVT files
Product Flyer
Environmental Choice Certificates
BPIS Building Product Information Sheet
Loadspan and fixing table
Commercial Roof Details
Commercial Vertical Cladding
Commercial Horizontal Cladding
Residential Roof Details
Residential Vertical Cladding
Residential Horizontal Cladding
Metalcraft Roofing Company Profile
COLORSTEEL® Fire Testing of Coated Steel Products
COLORSTEEL® Environmental Categories
COLORSTEEL® Colour Brochure
COLORSTEEL® Maintenance Recommendations
COLORSTEEL® Maxam™ Product Information Sheet
NZMRM Code of Practice Version September 2023
NZMRM Installation Guide
Masterspec Specification Link
Metalcraft Profile Spec Details
